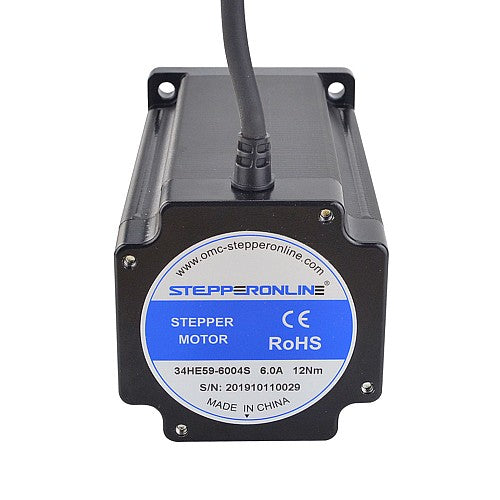

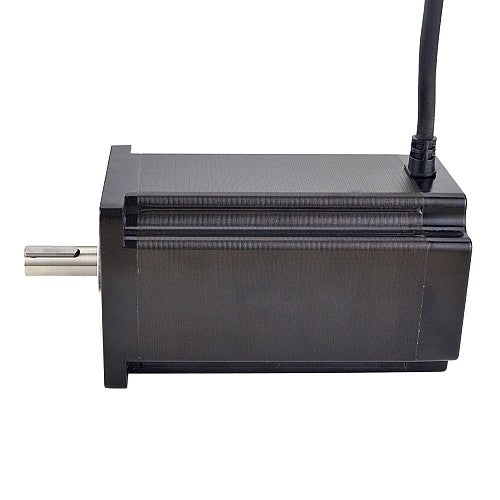

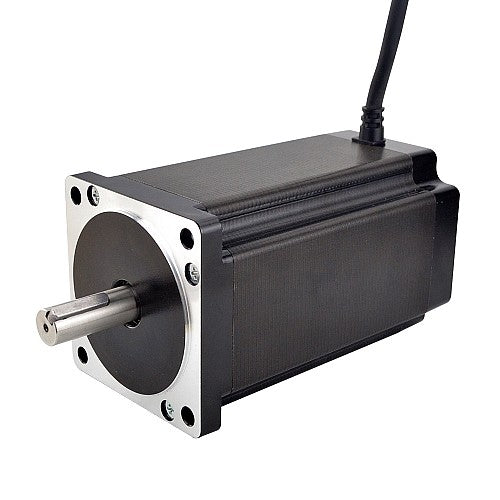

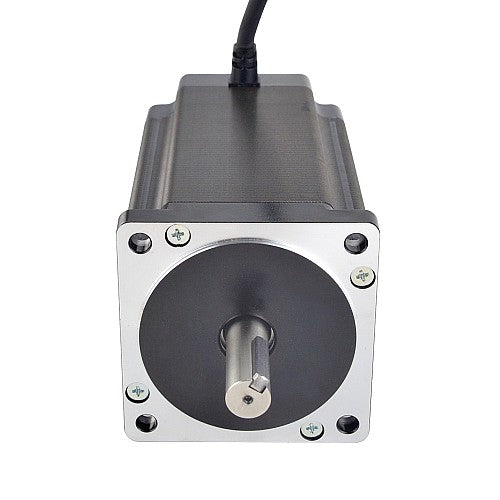

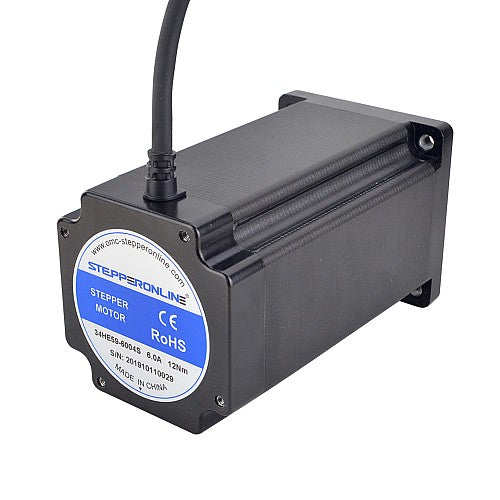

E Series Nema 34 Stepper Motor Bipolar 1.8deg 12.0Nm(1699.34oz.in) 6.0A 86x86x151.5mm 4 Wires

You will be transfered to StepperOnline to purchase

Electrical Specification

• Manufacturer Part Number: 34HE59-6004S
• Number of phase: 2
• Step Angle: 1.8deg
• Holding Torque: 12.0Nm(1699.34oz.in)
• Rated Current/phase: 6.0A
• Phase Resistance: 0.7ohms± 10%
• Inductance: 7.9mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

Physical Specification

• Frame Size: 86 x 86mm
• Body Length: 151.5mm
• Shaft Diameter: Φ14mm
• Shaft Length: 37mm
• Keyway Shaft Length: 25mm
• Number of Leads: 4
• Lead Length: 500mm
• Weight: 5.3kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue
