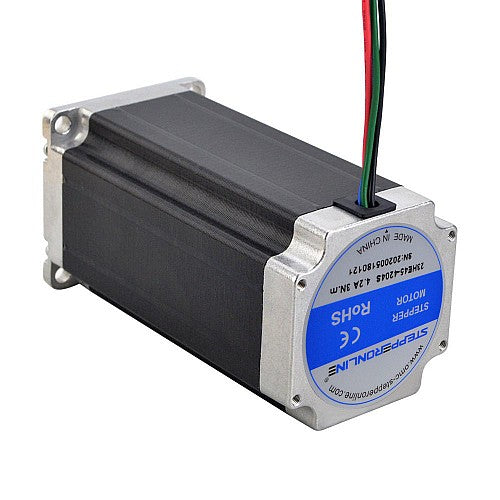

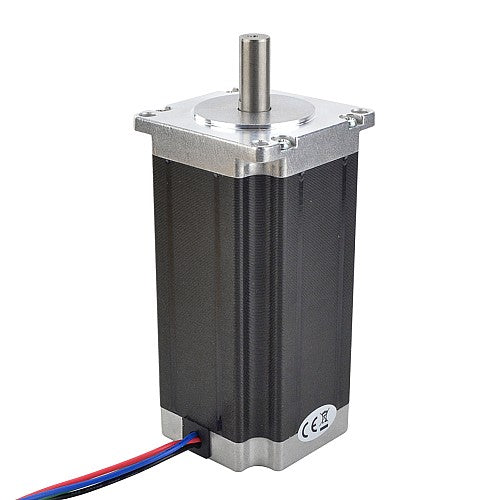

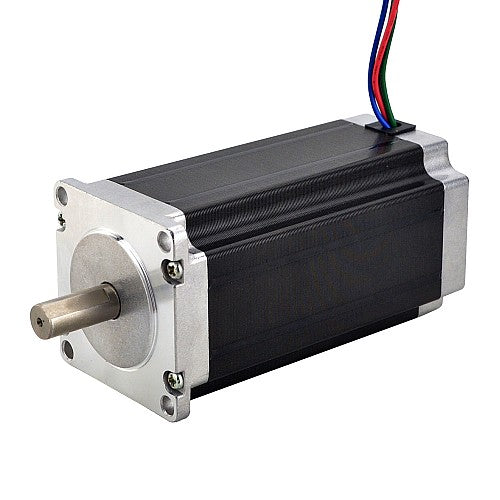

3pcs E Series Nema 23 Bipolar 1.8deg 3.0Nm(425oz.in) 4.2A 57x57x113mm 4 Wires

You will be tansfered to StepperOnline to purchase

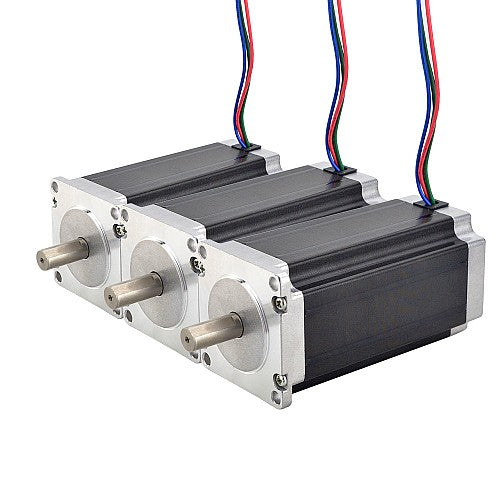

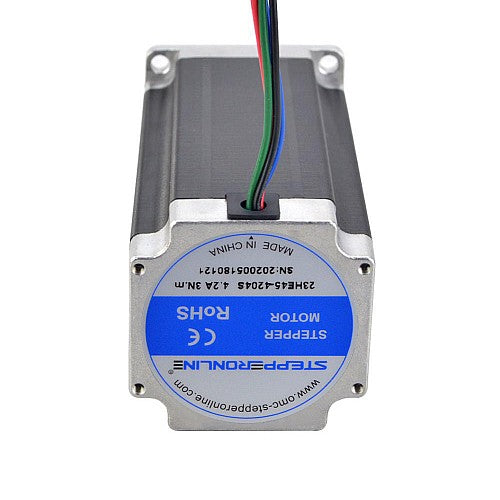

Package includes: 3 x 23HE45-4204S

Electrical Specification

• Manufacturer Part Number: 23HE45-4204S
• Number of phase: 2
• Step Angle: 1.8deg
• Holding Torque: 3.0Nm(425oz.in)
• Rated Current/phase: 4.2A
• Phase Resistance: 0.9ohms± 10%
• Inductance: 3.8mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

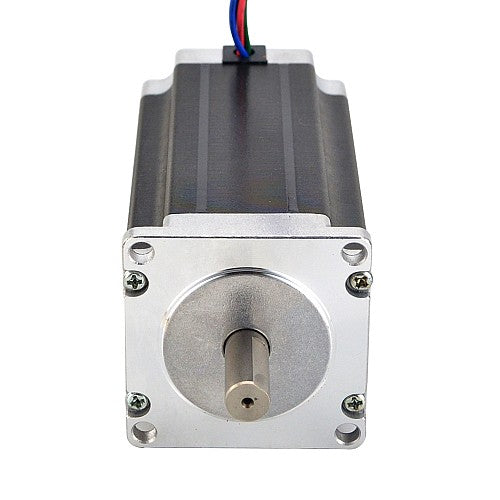

Physical Specification

• Frame Size: 57 x 57mm
• Body Length: 113mm
• Shaft Diameter: Φ10mm
• Shaft Length: 24mm
• D-cut Shaft Length: 20mm
• Number of Leads: 4
• Lead Length: 500mm
• Weight: 1.8kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue
